What is an overhead crane? Complete Procurement and Selection Guide

Introduction

In factories, warehouses, or various processing workshops, the efficiency of material transportation directly affects production progress and is also related to daily operating expenses. When choosing indoor lifting equipment, people often come into contact with overhead cranes.

Some first-time buyers and factory management personnel are not clear about the construction principle of this equipment, nor do they know if their own site is suitable. This practical purchasing guide is explained in plain language, taking you through a comprehensive understanding of overhead cranes and helping you determine the crane that fits the on-site working conditions.

The meaning of overhead crane

Overhead crane, also commonly known as electric bridge EOT crane, is a fixed installation industrial lifting equipment that is installed at the top frame position of factories and warehouses. Different from ground mobile lifting equipment, it relies on the track laid by the factory columns and steel frames for operation, covering the entire indoor area without occupying the ground use space throughout the entire process.

The equipment is equipped with an electric hoist, a running trolley, and a walking transmission structure, which can independently complete the lifting and translation of heavy objects. It is also the most widely used and cost-effective lifting equipment in the field of indoor industrial material handling.

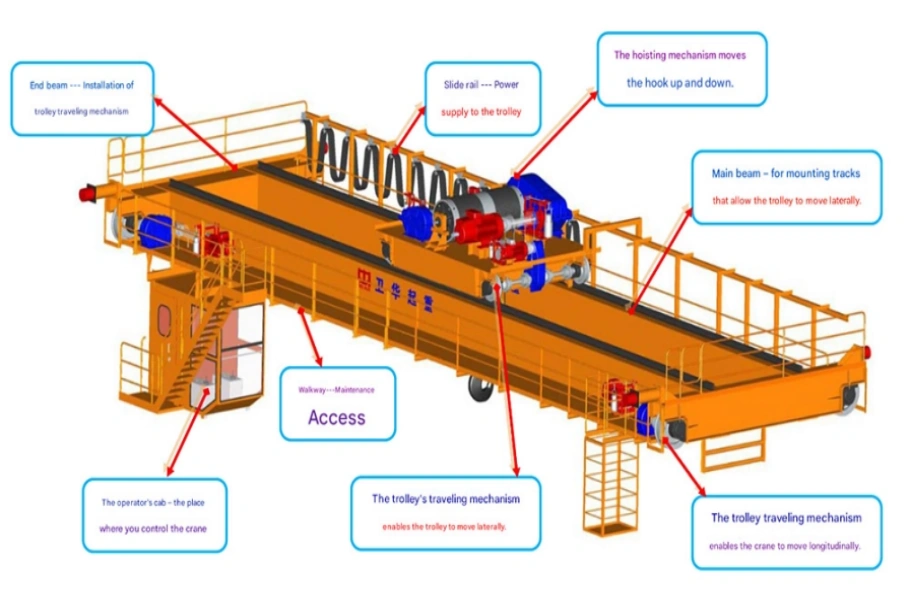

Core operating principle

The operation mode of the bridge crane is simple and reliable. The main beam travels left and right along the top track, and the small car carried on it can move back and forth on the main beam, coupled with the vertical takeoff and landing operation of the hoist, covering the three-dimensional lifting range of the factory area in all directions. The device supports two operation modes: remote control and cab control, which are easy to operate and can meet the frequent lifting operation needs in the factory area.

Mainstream classification of overhead cranes

According to the structural style and actual usage scenarios, the mainstream types are single beam bridge cranes and double beam bridge cranes.

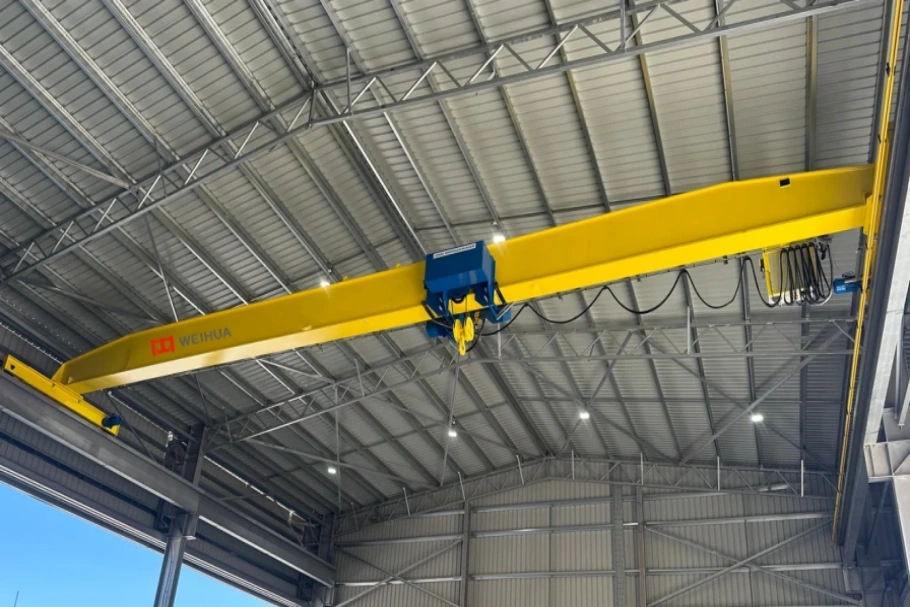

Single girder overhead crane

The overall single main beam structure, lightweight body, simple structure, and affordable procurement cost. The conventional load-bearing range is 1 ton to 20 tons, suitable for small and medium-sized tonnage lifting operations, commonly used for daily material transportation in ordinary production workshops, warehouses, and processing assembly lines.

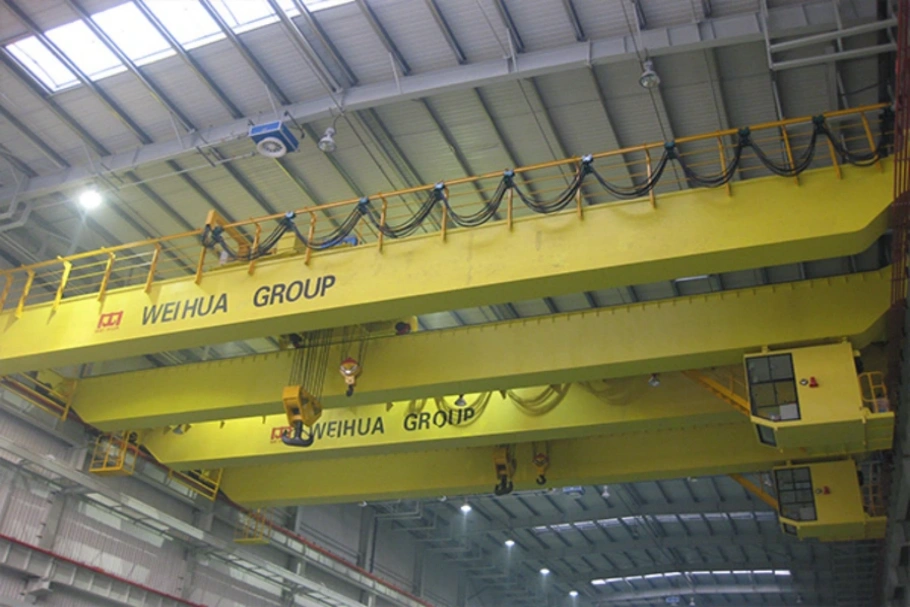

Double girder overhead crane

Double beam reinforced fuselage provides stronger load-bearing capacity, smoother operation, and longer equipment lifespan. It can undertake large tonnage and high load continuous operations, with a maximum lifting capacity of up to 100 tons, suitable for use in steel plants, heavy machinery processing, metallurgical workshops, and large factories.

Customized special models

Customized models are available for various complex and demanding work environments according to specific needs. Low clearance bridge cranes are selected for areas with limited floor height; Flammable and explosive petrochemical plant areas are equipped with explosion-proof devices; The high-temperature smelting and metallurgical workshop is suitable for high-temperature resistant models.

Advantages of overhead crane

1. Do not occupy ground space

The equipment is suspended and the ground area is fully reserved for easy placement of production equipment and personnel movement, maximizing the utilization of the overall space in the factory area.

2. There are no blind spots in the scope of the assignment

It can span the entire span and length of the factory, and the entire factory area can be reached for lifting, avoiding the limitations of small lifting equipment operations.

3. Stable, durable and worry free operation

The whole machine is made of industrial steel, with strict quality standards for core components, and can withstand long-term uninterrupted operation. Smooth operation with low noise, minimal daily maintenance workload, effectively reducing losses caused by equipment failures and shutdowns.

4. Outstanding cost-effectiveness in comprehensive use

Compared to other heavy lifting equipment, the purchase cost is lower, the on-site installation process is simpler, and the service life is longer. Paired with comprehensive after-sales support, it is a cost-effective choice for long-term lifting operations in the factory area.

Applicable industries and scenarios

Overhead crane has strong adaptability and is widely used in various industrial fields

1. Production workshop, assembly line, and goods storage warehouse;

2. Steel smelting, metallurgical processing, and machinery manufacturing industries;

3. Special operation areas for petrochemical and coal mining;

4. Power engineering, railway infrastructure, and large-scale industrial projects.

Practical reference points for purchasing

Some overhead crane purchasers only compare prices when selecting, which can easily lead to equipment specifications and on-site working conditions not matching. To select a suitable bridge crane, it is necessary to verify the height and span of the factory building, the required lifting tonnage, the frequency of daily operations, as well as the environmental conditions of the factory workshop such as temperature, dust, and explosion prevention on site.

WEIHUA have mature crane customization services that can tailor design solutions based on the actual situation of the factory area. This ensures that there is no waste of funds caused by redundant configurations, and that equipment performance meets production standards without delaying normal production operations.

Summary

Overhead crane is an essential core lifting equipment in modern industrial production, with flexible operation, wide applicability, stable and reliable operation, and has become the mainstream equipment for indoor material handling in factories at home and abroad.

If you are looking for a reliable, customizable, and reasonably priced bridge crane, please feel free to consult and communicate at any time. We can quickly calculate quotations for overseas customers, provide on-site installation guidance, and offer thoughtful after-sales support services throughout the entire cycle.
